Description:

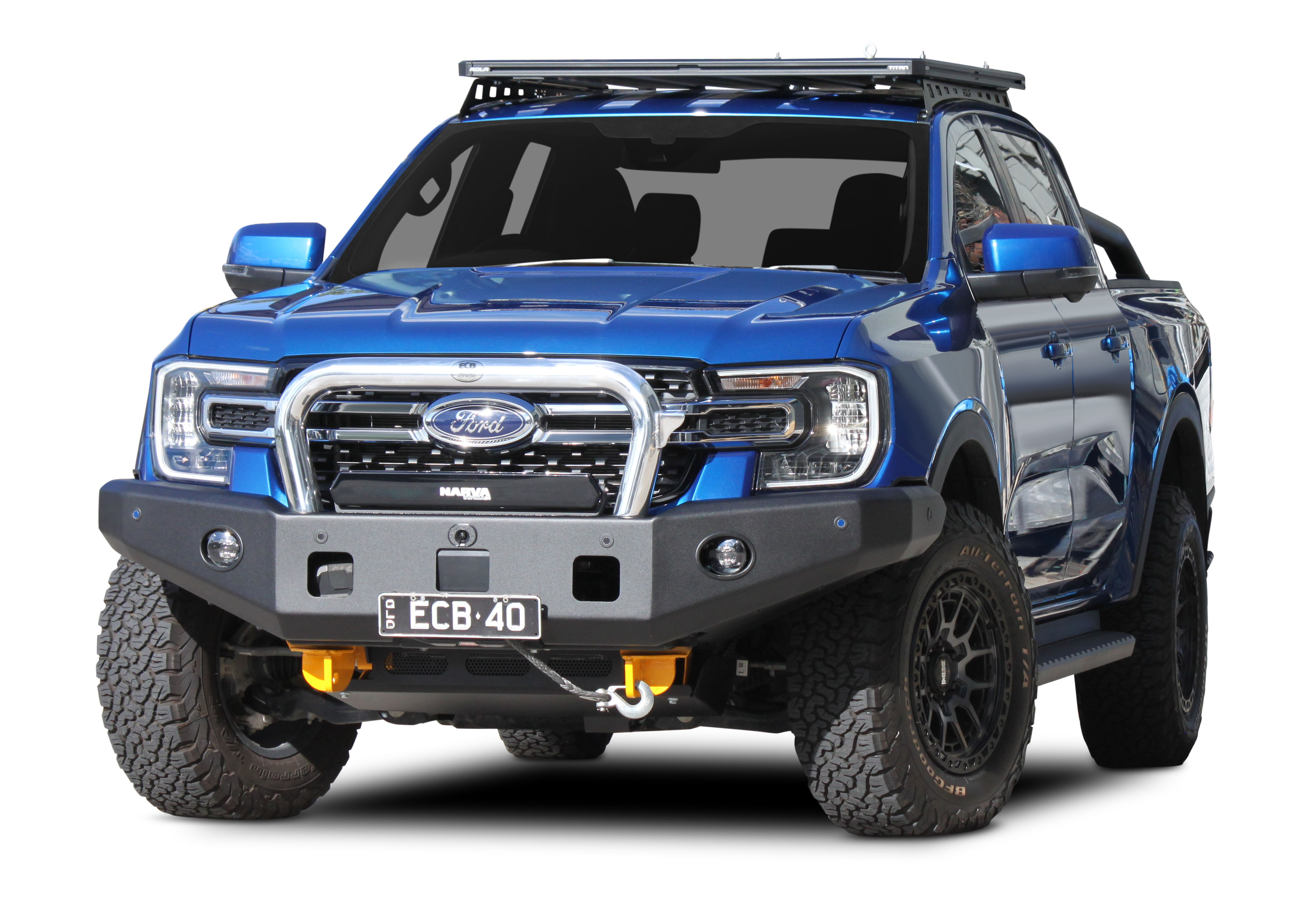

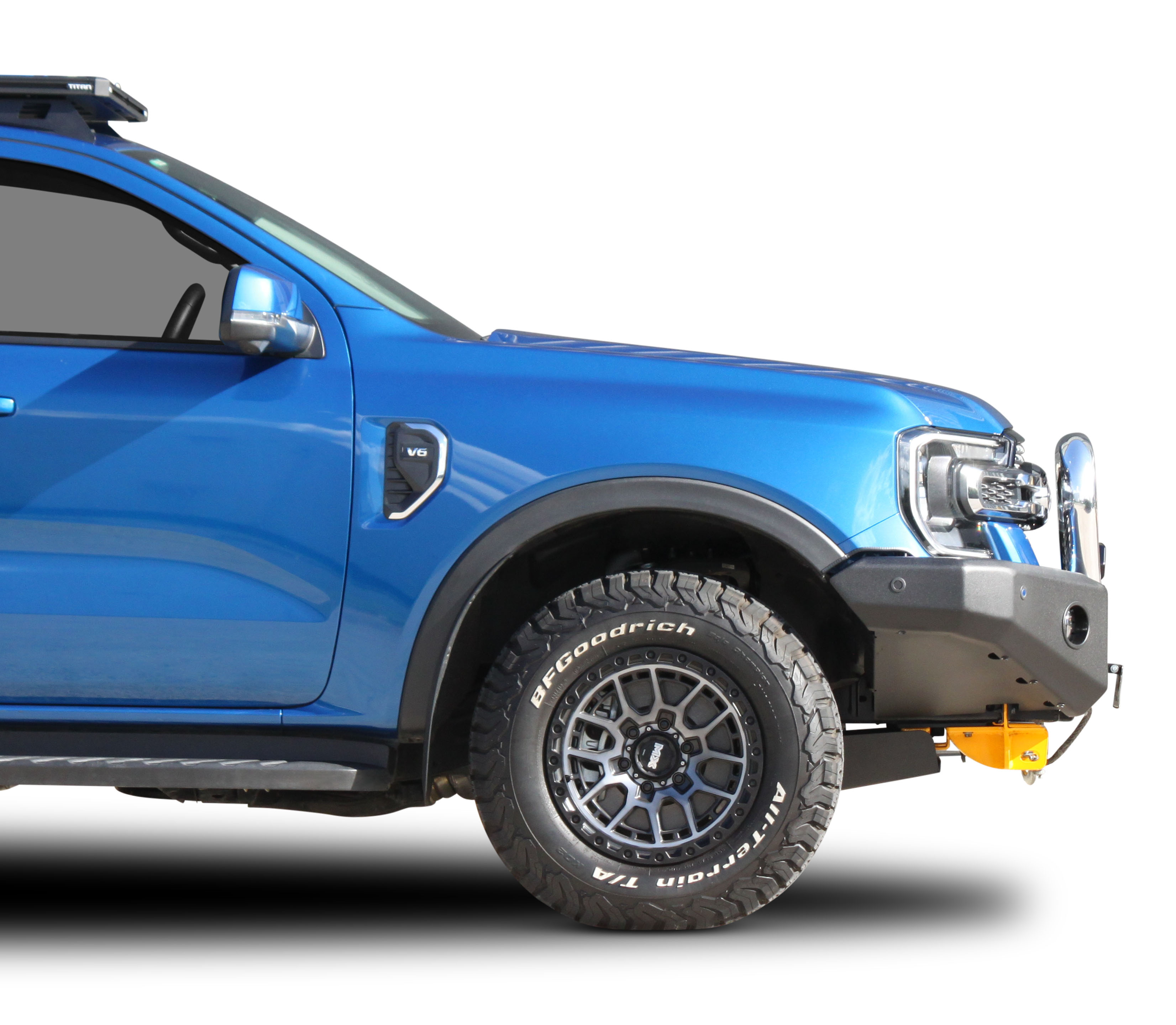

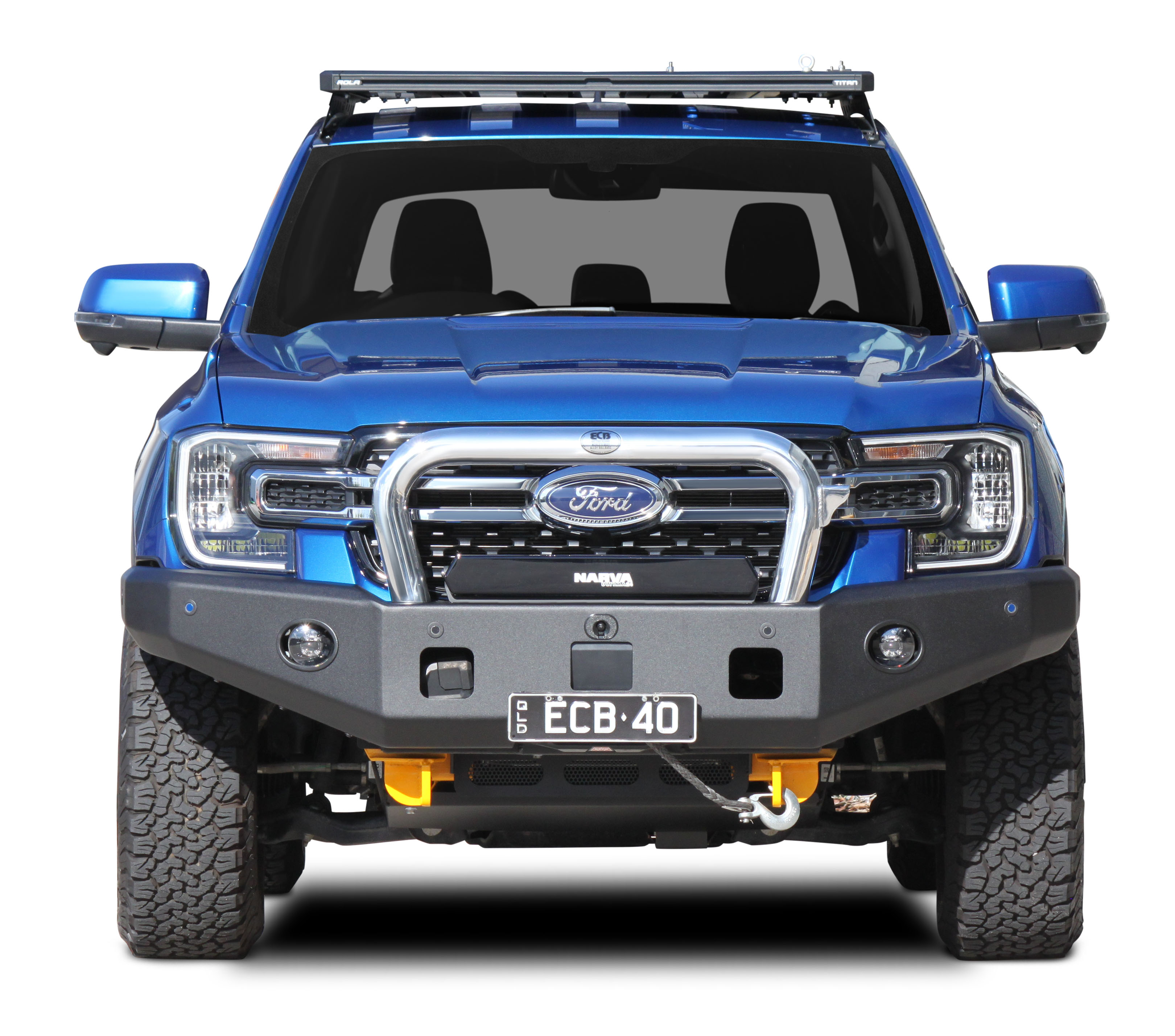

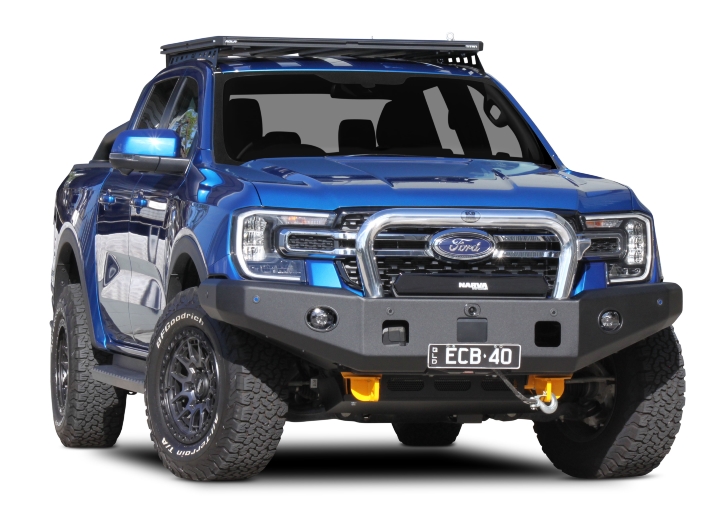

Our Single Hoop Winch Bullbar is designed with a removable 76mm centre tube that is available in our mirror polished alloy finish or powder coat. The 6mm alloy channel is fully welded and manufactured from hi-tensile, structural grade Alloy to provide maximum protection. This Winch Bar includes a specifically designed steel winch mounting system ensuring that allows the addition of up to a 11,500 LB low Mount Winch and incorporates 2 Rated Recovery Points. The Winch Bar can accommodate the Rangers 6 parking sensors and utilises OEM fog lights. The vehicles front parking sensors and sonar are relocated to the Winch Bar channel to retain full functionality of these important safety features.

• ADR Compliant
• Airbag Compatible
• Steel winch mounting system
• Rated Recovery Points
• Removable 76mm x 4.75mm centre tube
• 6mm thick hi-tensile alloy channel
• Camera & sonar relocation kit
• Utilises factory fog lights
• Bullbar adds 67 kg to your vehicle with rated recovery points and removable centre hoop.
• Won t affect new vehicle warranty
• Lifetime Warranty

ECB Frontal Protection Products are proudly manufactured in Australia, and we offer a Lifetime Warranty.

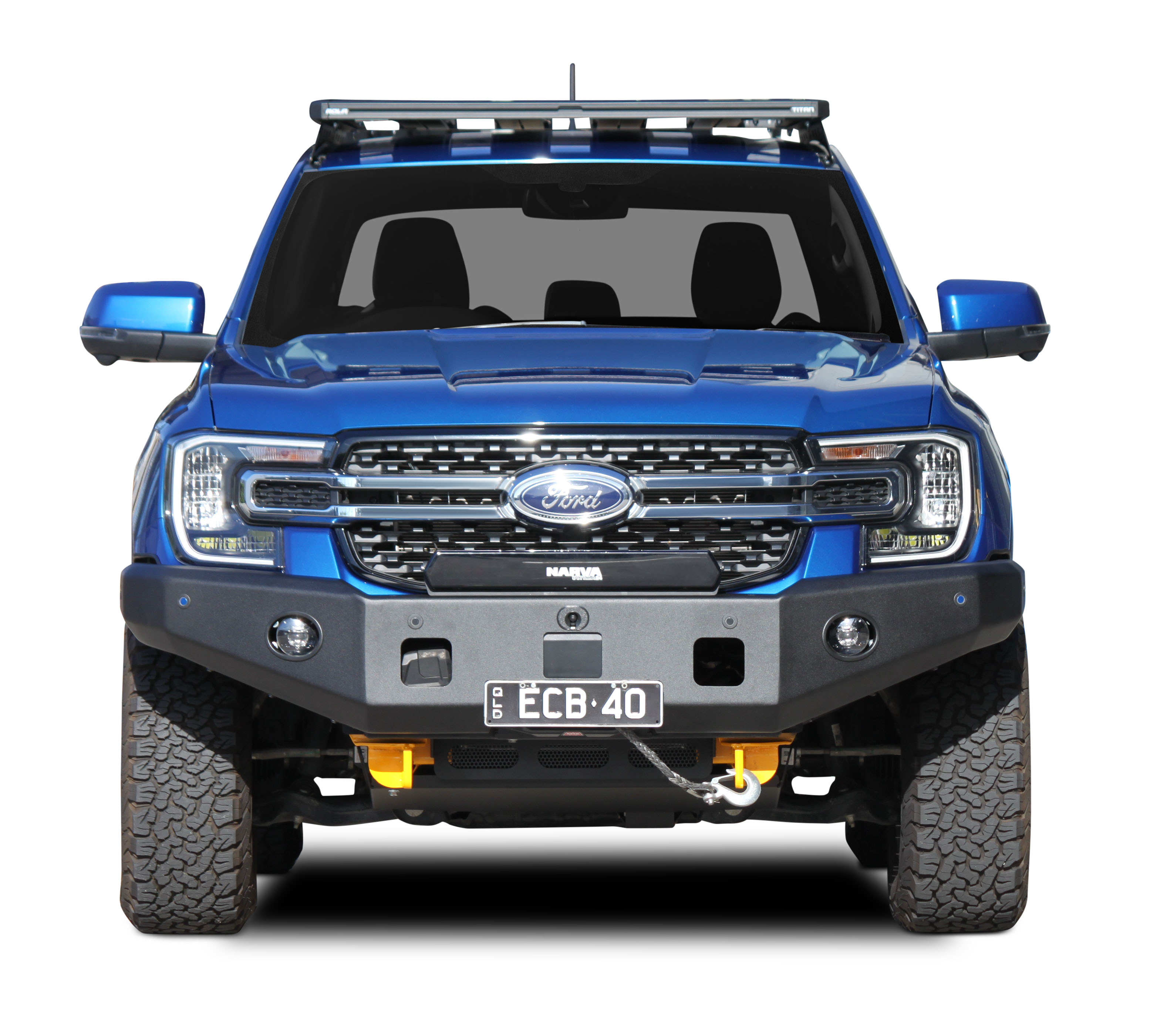

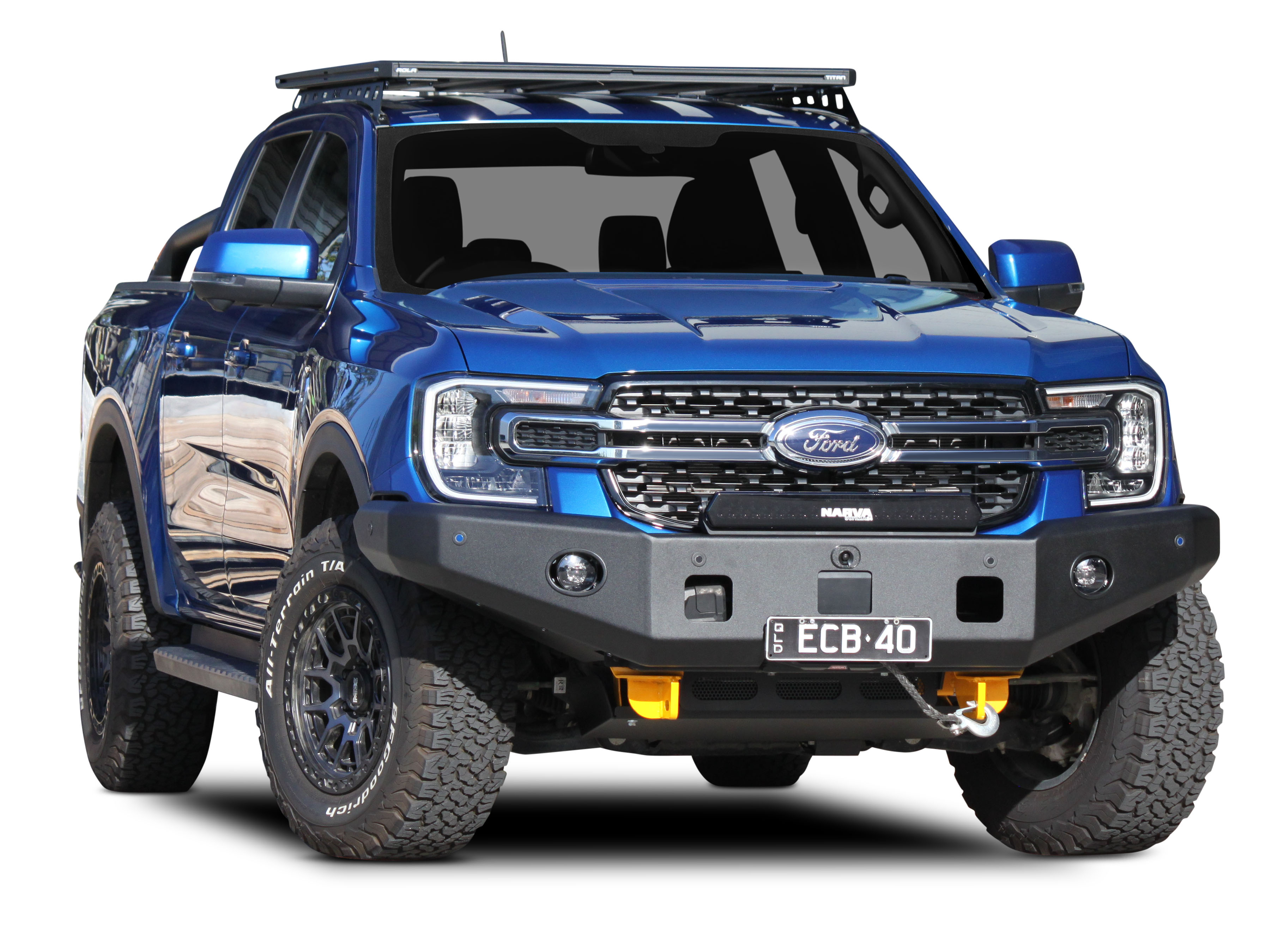

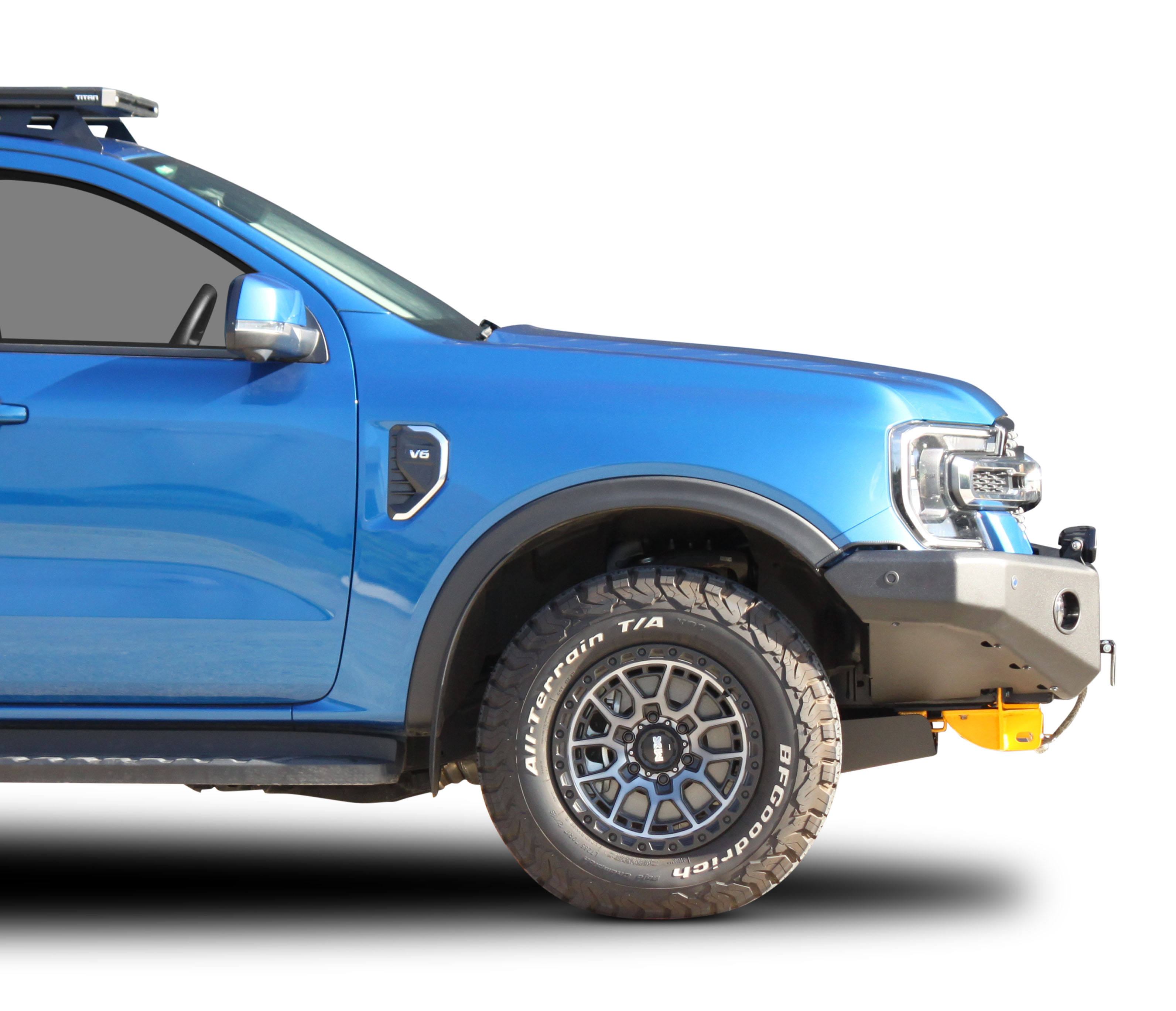

Some Images shown with Alloy Centre Hoop removed.

$3,770.00 incl. GST (RRP)*

* RRP pricing does not include freight or fitting.

---

Title	Information
Total Product Weight	62
Net Weight Added to Vehicle	57
Width of Bar (mm)	1930
Distance Added to Front of Vehicle (mm)	120
Centre Tube Height Clearance (mm)	265
Grill Clearance (mm)	20
Minimum Centre Tube Inside Width (mm)	560
Maximum Centre Tube Inside Width (mm)	640
Spot Tab Centre to Centre (mm)	N/A
Fitting Instructions	View Fitting Instructions
Fitting Video
Retail Spec	Download Retail Spec
Retail Video
Sales Brochure	View Sales Brochure
