ISUZU D-MAX Winch Bullbar (07/20 to 04/24)
Choose Finish:
Description:

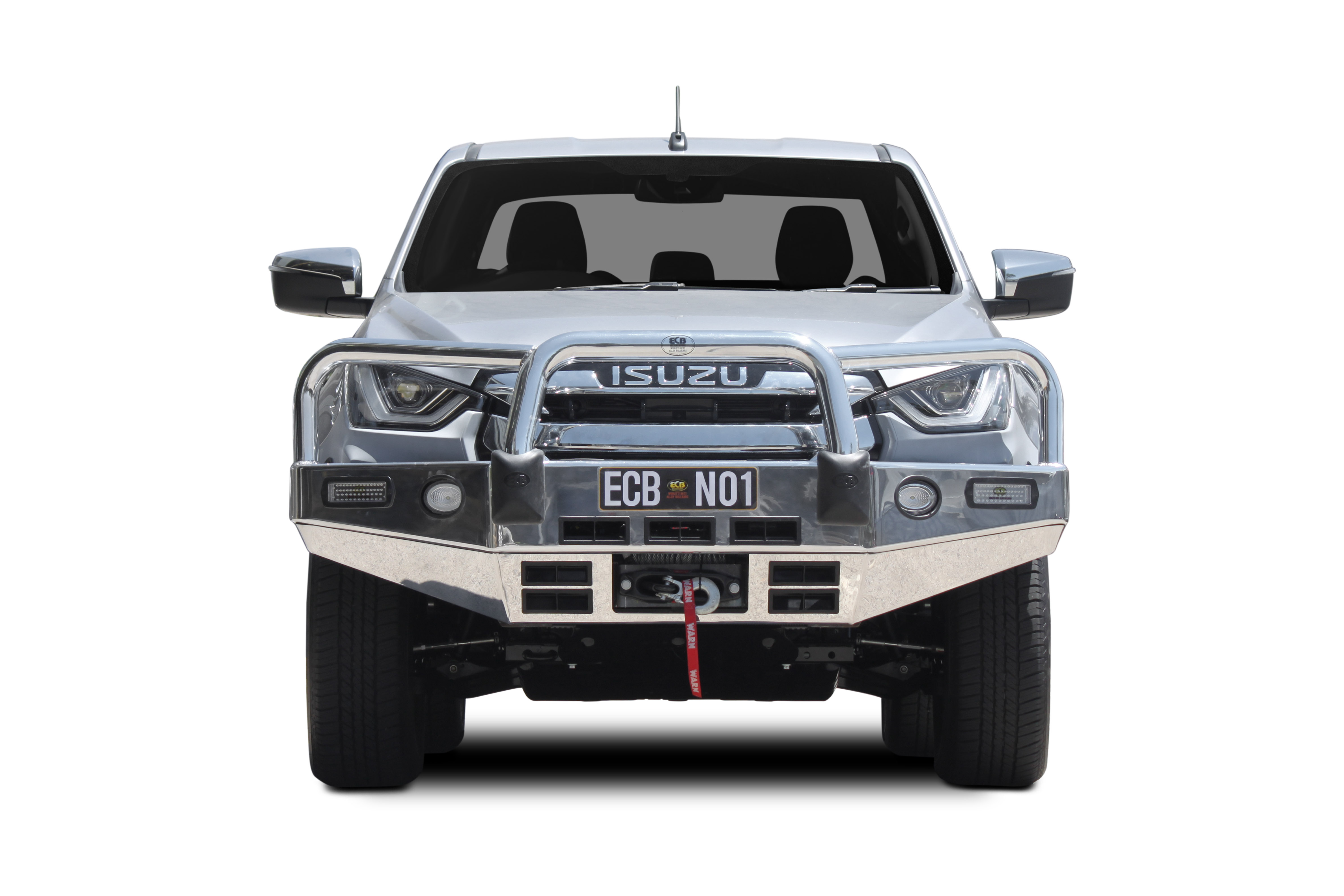

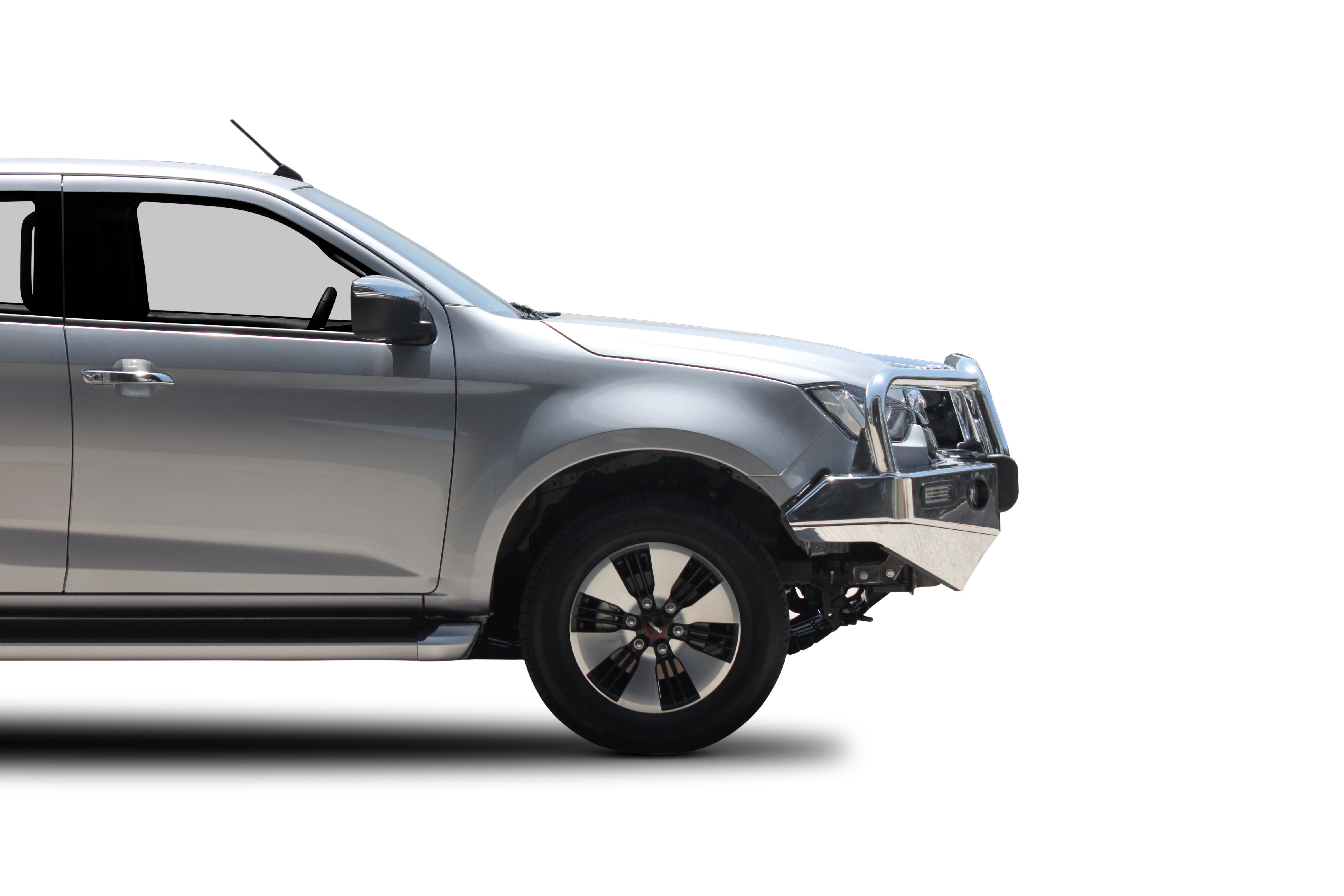

For the ultimate in frontal protection you won't go past the superior strength, quality and style of the ECB Alloy Winch Bullbar, designed specifically to suit the new Isuzu D-MAX.
ECB
s Winch Bullbar incorporates a bumper cut design, that wraps around the front of the vehicle to provide the strongest and best fit possible. This no compromise design is engineered to accommodate up to a 10,500lb low mount winch.
6mm thick hi-tensile alloy one piece channel section
Fully welded construction
Gusseted shoulder tubes
Braced lower protection skirt
LED indicator/park lights
LED bumper lights
76mm x 4.75mm centre tube
63mm x 4.2mm shoulder tubes
If vehicle does not have bumper lights standard these will need to be wired as an auxiliary light during installation.
ECB can supply a harness if you add 1 x ASLWIRING kit to order.
Excludes X-Terrain model.
If vehicle does not have bumper lights standard these will need to be wired as an auxiliary light during installation. ECB can supply a harness if you add 1 x ASLWIRING kit to order.
Not tested on 2024 face lifted models.
$4,116.00 incl. GST (RRP)*
* RRP pricing does not include freight or fitting.
Stock Availability:
0 Polished Finish Available to ship in 24 hours
0 Choice of Powder Coat Available to ship in 10 working days
0 Polished Finish Available to ship within 35 working days
Can Build to Order in 35 working days
| Title | Information |
|---|---|
| Total Product Weight | 52 |
| Net Weight Added to Vehicle | 44 |
| Width of Bar (mm) | 1980 |
| Distance Added to Front of Vehicle (mm) | 200 |
| Centre Tube Height Clearance (mm) | N/A |
| Grill Clearance (mm) | 90 |
| Minimum Centre Tube Inside Width (mm) | 460 |
| Maximum Centre Tube Inside Width (mm) | 680 |
| Spot Tab Centre to Centre (mm) | N/A |
| Fitting Instructions | View Fitting Instructions |
| Fitting Video | |
| Retail Spec | Download Retail Spec |
| Retail Video | |
| Sales Brochure | View Sales Brochure |
